PXIHigh Matrix,Density 6UEMR132x8,45-542-001

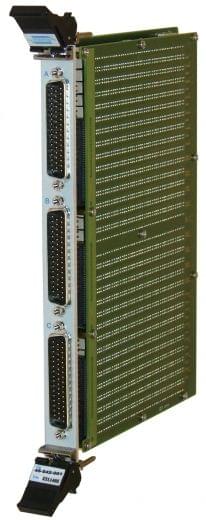

The 6U PXIMatrix Module 45-542 is a very high density electro-mechanical relay matrix available in 132x8 format with 1 pole switching. Typical applications include signal routing in Functional ATE and data acquisition systems. The matrix is constructed using high reliability 2A electro-mechanical relays, offering >10e8 operations (under low power loads) to give maximum switching confidence with long life and stable contact resistance.

Features
  • 132x8 High Density Matrix in 6U PXI Format
  • Uses High Gold-Plated Contact Electro-mechanical Relays
  • Switch 1A & up to 170VDC/120VAC with 60W Maximum Power
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Ease of Maintenance & Repair Through the Use of Leaded Relays
  • Pin Compatible With 45-541 Matrix
  • Supported by eBIRST Switching System Test Tools
Platform PXI
Switch Type EMR
X Size 132
Y Size 8
Banks 1
Poles 1
Max I (A) 1
Max V DC 170
Brand Pickering Interfaces
