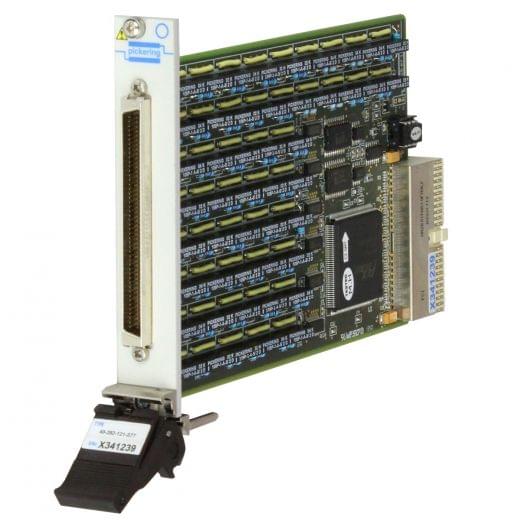

Dual 12-Ch (no resistors fitted), PXI Selectable Resistors,40-281-021
The 40-280 series provides a cost effective, high density solution for applications requiring a high channel count of simple resistor configurations. The 40-280 provides up to 48 isolated channels, each of which can be programmed as a short circuit, an open circuit or a fixed resistor value. The 40-281 provides up to 24 isolated channels, each of which can be set as an open circuit, an offset resistor value or a fixed resistor value plus the offset. The 40-282 is a potential divider with up 24 separate channels. This can be used to emulate potentiometer devices, each channel having a fixed R1 R2 ratio. Additionally, the centre point can be shorted to either of the potentiometer end points. Modules are supplied without any resistors fitted, permitting the user to fit the values required. Please contact the Pickering Sales Office if the module is required pre-fitted with resistors.
|Accuracy (%)||Customer Specified|
|Resolution (Ohm)||Customer Specified|
|Power Rating||Customer Specified|
|Resistance Range||Customer Specified|
